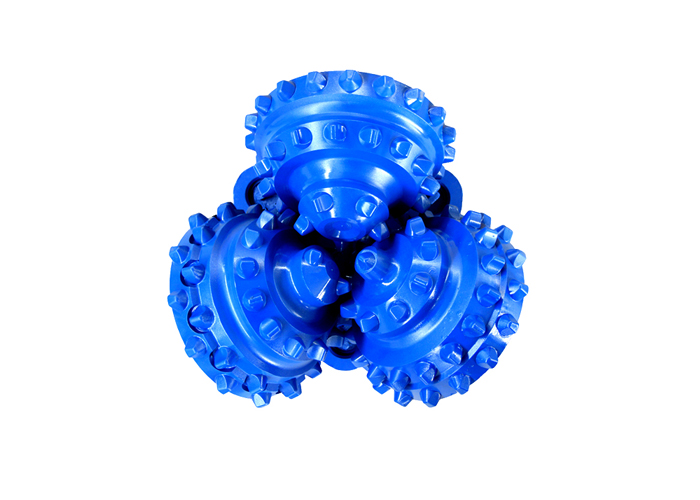

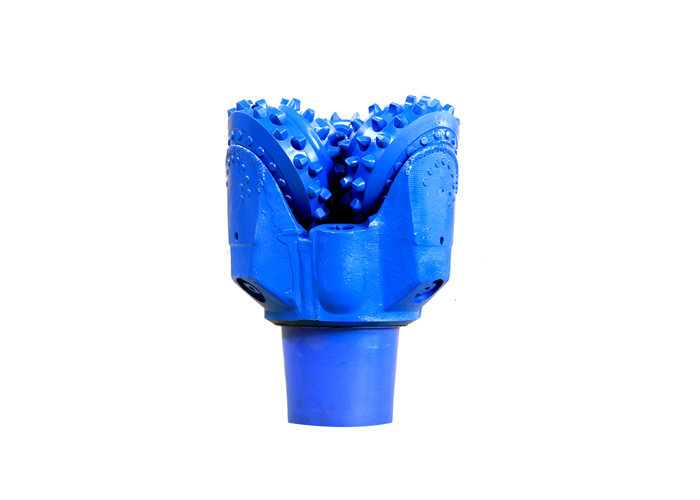

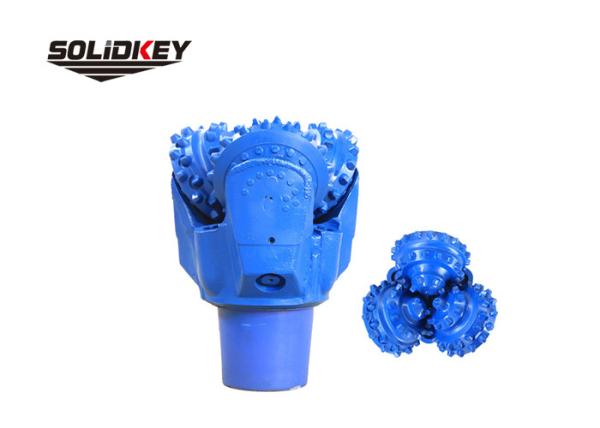

Durable 12 1/4 Inches Tricone Water Well Drill Bits

Brand Name : OEM

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, T/T, Western Union

Supply Ability : Based on the detailed quotation

Delivery Time : 10-20 days working days

Packaging Details : Wooden cases standard export package

Name : Tricone Drill Bit

BearingType : Sealed

Size : 12 1/4"(311.1mm)

Advantage : High Cost Performance

Market : Global

Application : Oil, Gas, Geothermy, Water well drilling, Mining

Formation : Medium hardness formation

Certificate : API&ISO

Contact Now

Durable 12 1/4 Inches Tricone Water Well Drill Bits

12 1/4 inches tricone bit is widely used in drilling projects, oil & gas well drilling, geothermal well drilling, water well drilling, and trenchless drilling,. IADC537G is suitable for drilling medium hardness rocks, like limestone, shale, sandstone, etc.

Drillers use it as integral tri-cone bits, or split it into 3 segment(thrids, 1/3) to weld it on trenchless hole opener, foundation rock piling bucket.

In water and geothermal well drilling fields, elastomer sealed bearing is recommended to achieve high cost-performance. Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure comprensation system and specific grease can greatly increase the reliability of lubricating.

12 1/4" IADC537G is the most regular sizes and hot selling model tricone bits in the world.

Products Specfication of 12 1/4" TCI Tricone Bits

Size	12 1/4"
Bearing Type	Elastomer Sealed Bearing
Tooth Type	TCI
Circulation Type	Mud Fluid
Thread Connection	6 5/8 Reg Pin
Gauge Protection	Available
shirttail Protection	Available

Operating Parameters

RPM(r/min)	120~50
WOB(KN)	139~311
Application	Medium formation,such as medium shale,limestone, medium sandstone,medium formation with harder and abrasive interbeds, etc.

Durable 12 1/4 Inches Tricone Water Well Drill Bits
